By combining proven Hall Effect technology with the geometry of the ELPM series, reliable performance is provided for harsh environment position measurement applications such as ride height, suspension and steering angle measurement.

• Hall Effect technology
• IP68 rating
• Electrical Stroke 25 to 175mm (7 options)
• Temperature range
  • ELHM: -40°C to +125°C (Short Term +150°C
  • ELHM-POP: -30°C to +125°C

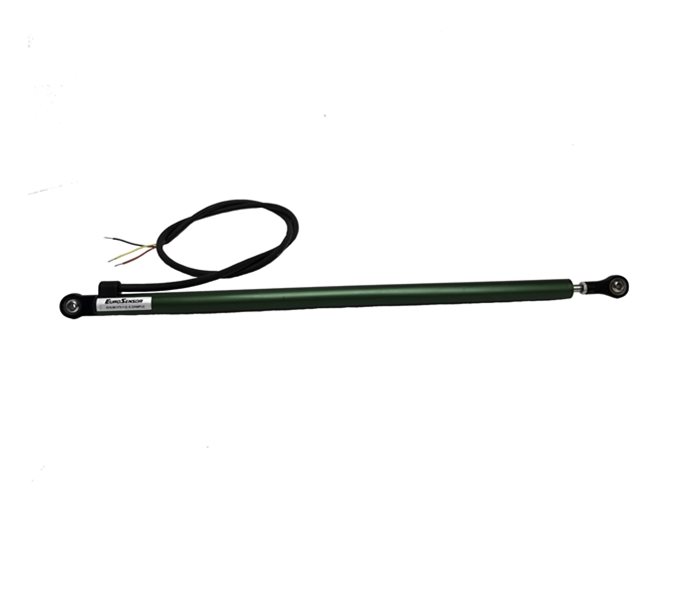

The compact 9.5 mm diameter sensor includes a fully over-moulded Hall Effect chip technology with an innovative drive mechanism that maintains complete and even contact even under the most arduous physical and environmental conditions.

The IP68 seal systems employed at both shaft and cable exit in the design allow for improved reliability and endurance where unpredictable wet and hostile conditions exist.

The ELHM series offers stroke lengths f rom 25 to 175 mm in convenient increments with self-aligning pivot bearing mountings or optional snap-on mountings with the ELHM-POP option for fast installation or removal.With full in-house design capabilities we can offer fully bespoke options.

This could include but isn't limited to; Stroke Lengths / Spring Return/ Mounting / Cable and Connector options
